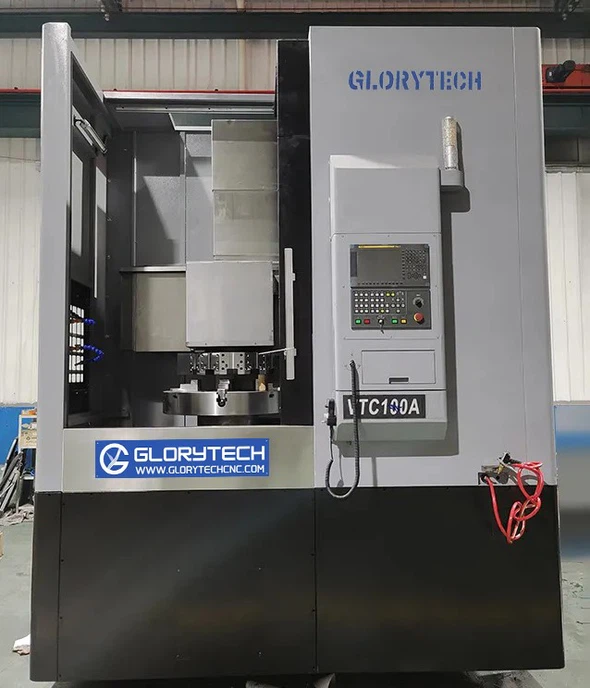

Name: VTC100A Model 1000mm Automatic CNC Vertical Metal Lathe Machine Tools
Model Name: GY-VTC100A
Important Information of VTC80 CNC Vertical Lathe Machine Tools:
Model Number: GY-VTC100
Type: VERTICAL
Max. Length of Workpiece (mm): 1000
Max. Spindle Speed (r.p.m): 1000 r.p.m
Machining Capacity: Heavy Duty
Spindle Bore(mm):200
Width of bed (mm): 55 mm
CNC Control System: FANUC/ Syntec/KND
Toolpost Brand: Taiwan Chengxin
Tool Post Stations:12/8/6
Positioning Accuracy (mm): ±0.01
Repeatability (X/Y/Z) (mm): ±0.008
CNC Vertical Milling Lathe Machine Application
The VTC100 Model Vertical Milling Lathe Machine centers: can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
CNC Metal Lathe and Milling Machine Main Parameters
|
Name |
CNC vertical lathe Machine |
|
Model |
GY-VTC100 |
|
CNC System |
Siemens/Mitsubishi/Fanuck etc. |
|
TRAVEL |
|
|
X-axis |
870 |
|
Z-axis |
850 |
|
CAPACITY |
|
|
Max.swing dia. |
Φ1200 mm |
|
Max.turning dia. |
Φ800 mm |
|
Max.turing High |
Φ1000 mm |
|
SPINDLE |
|
|
Max-Spindle speed |
800 rpm |
|
Spindle motor power(servo motor) |
22Kw |
|
Spindle type |
straight |
|
Spindle torsional |
1370N.m |
|
Spindle bearing grade |
Japan NSK |
|
Dimension-Outside |
Φ200mm |
|
Speed-down |
1:2 |
|
Chuck &Automatic lathe turret |
|
|
Chuck type |
Hydraulic chuck |
|
Dia.Chuck |
Φ 800mm |
|
Lathe turret work station |
Horizontal 12 (center height 160mm) |
|
SLIDE WAY |
|
|
X-axis slide way |
2, width 55mm |
|
Z-axis slide way |
2, width 55mm |
|
Ball screw |
|
|
Ball screw accuracy |
Level C3 |
|
Ball screw diameter X/Z |
X:Φ50 /Z:Φ50 |
|
ACCURACY |
|
|
Repeat positioning |
±0.005mm |
|
Positioning |
±0.01mm |
|
Least input increment |
0.001mm |
|
POWER REQUIRE |
|
|
Power source |
3￠-AC 380V 50Hz±5% |
|
Working environment temperature and humidity |
Temperature 5～38°C/humidity <85% |
|
OTHERS |
|
|
The hydraulic pressure stands |
2.2KW/50Hz-40L |
|
Cross weight |
11T |
|
Packing dimensions |
2600*2400*3500mm |
Some details of VTC100 CNC Vertical Milling Machine for reference
