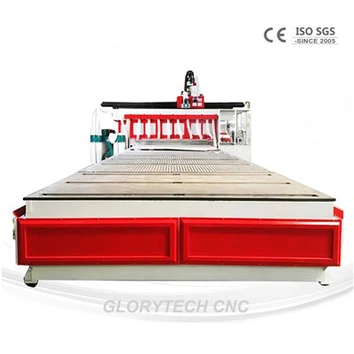

Composite Sandwich Panel Cutting Machine
GloryTech Big Size Professional Composite Sandwich Panel CNC Cutting Machine:
Applicable Processing and Industries:
Large Composite Sandwich Board CNC Cutting Machine, can realize linear cutting, curve cutting, drilling, milling, trimming and chamfering. It can be used for the contour cut of the heat-insulating composite sheet, various holes , the processing shape of the sinking groove, and can also be used for the interior parts.
It also could be used for Caravan Panel board cutting, Insulated truck sandwich panel cutting, refrigerated car panel board cutting, isolation cabin board cutting, fiber glass sandwich panel cutting, insulated panel cutting, composite wall panel cutting, ERP GRP Sealed Sandwich Panel Cutting, Structural Insulated Panels Cutting, laminated plywood/ foam panel cutting, fiberglass panel cutting, OSB board processing, XPS Foam Sandwich Panel Cutting, Isothermal Panel cutting, pre-laminated composite panel cutting, Modular wall panel cutting, motorhome board cutting, negative pressure sandwich panel cutting, XPS sandwich panel cutting, Cold Rooms composite panels cutting, Eskies composite panel cutting, Partition Walls composite panel cutting, CLT panel cutting, etc..
Main Features：
Equipment spindle: the original imported Taiwan mechanical spindle, with automatic tool change kinetic energy, spindle speed (0-10000) rpm / min, BT40 fixture standard, the largest clamping knife diameter φ32mm, with a large torque output, radial run out small And other advantages, suitable for lined with aluminum, stainless steel composite sandwich board fast cutting processing, equipped with disc magazine, capacity 6, can be achieved in the program automatically tool change function, high automation performance. For the plate of the straight line, curve cutting, drilling and other processing, and support tapping function.

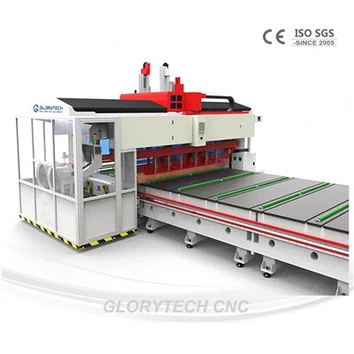

Imported automatic tool change spindle + five-axis mechanical saws, horizontal 360 degree arbitrary rotation angle, which make this machine can working on the panel materials front plate, side, around, slope to do cutting and tapping, milling, drilling and other technology.
Machine Parts

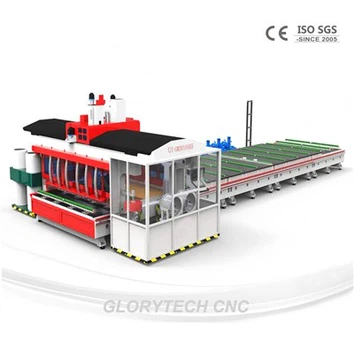

Five-axis linkage stepless variable angle design, can achieve any angle fast linear cutting, for the outer contour of the plate straight cutting and connecting slant fast cutting, can add the maximum diameter of 450mm blade, the maximum depth of 140mm.
vacuum adsorption table: the use of sub-grid format vacuum adsorption table, partition control, the table along the width (X axis) direction set the standard T-slot, using multiple vacuum pumps, with excellent adsorption capacity.
pneumatic lift rolling structure: the installation of pneumatic lifting platform on the table to facilitate the composite board from the front and rear ends of the material.
Taiwan's Syntec 200MA industrial control system： Stable performance, equipped with hand-held knife unit, resolution up to ± 0.001mm
Japan Yaskawa servo motor driver system： Japan Yaskawa high power AC servo motor, X axis 1.8KW, Y axis 1.8KW dual motor dual drive, Z axis 1.3KW with brake brake.
|
Applicable material: |
It applies to large panel production and processing ,such as Kinds of wood, fiberglass, fiberglass-laminated plywood and foam panels, FRP composite sheet, aluminum, hard plastic, acrylic, insulation materials and other large sheet. |
||
|
|
which are required on refrigerated compartments , insulation compartments , processing sun room, log cabin, RV , field barracks , quick housing , Caravans , Emergency Service Vehicles , Esky , Wall & Door Cladding etc . |
||
We're well-known as one of the leading composite sandwich panel cutting machine suppliers in China. Please feel free to buy high quality composite sandwich panel cutting machine at competitive price from our factory. Good service and punctual delivery are available.
