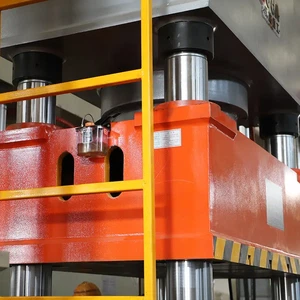

Name: 200 Tons Hydraulic Press Machine
Brand: GLORYTECH
SKU: 222616116

Name: 200 Tons Heavy Structure Hydraulic Press Machine for molds making

Machine Model : GY32-200T

Cartridge Valve --01

200 tons Hydraulic Press Machine Application

Main Application:This equipment is mainly used for a series of molding products such as the pressing and molding of composite materials, the pressing and molding of powder products, and the stamping, stretching and forming of metal sheet parts.

Crafts action:

1) Master cylinder single action: button start - rapid downward movement of the master cylinder - conversion to slow speed compression - pressure maintenance - pressure relief - return stroke of the master cylinder.

2). Stretching action: button start - rapid downward movement of the main cylinder - conversion to slow speed pressing and downward movement of the top cylinder - pressure maintenance - pressure release - return stroke of the main cylinder - ejection of the lower cylinder.

3). Ejection action: button start - rapid downward movement of the main cylinder - conversion to slow speed pressing - pressure maintenance - pressure relief - return stroke of the main cylinder - ejection and return of the top cylinder.

4). Sewer hatch (Manhole cover) processing case display

Various processes can be customized according to customer requirements.

Main Parameters of 200 tons Hydraulic press machine

Specification		Unit	200T
Nominal force		KN	2000
Ejecting force		KN	35
Max. pressure of liquid		MPa	25
Stroke of slider		mm	500
Max. opening height		mm	900
Working table size		mm*mm	660x660
Ejecting stroke		mm	250
Speed of slider	Descend speed	mm/s	100
	Working speed	mm/s	6-12
	Return speed	mm/s	100
Motor power		KW	7.5
Weight		T	3.4
