Name: Top Quality Large CNC Machine 5 Axles for 3D 4D 5D Ship Bus Model Mould Making
Model Name: GY-SG4080T-5S (Table Working Size: 4000*8000mm)
1. CNC Machine 5 Axles Center, has Gantry movement machine structure. Laddering installation linear guide rail improves gantry rigidity. Tempering processed treatment prevents gantry from deformation that might be caused by dead weight and weld, also greatly improves whole machine rigidity. Machine's accuracy and long time stability are well guaranteed.
2. Organ style dust proof in X and Y axis can make the guide way and rack&pinion clean during working, so their service life will be extended.
3. CNC Machine 5 Axles Center's Work table is made of cast iron via resin sand molding and tempering processed treatment. It has excellent shock resistance and thermal stability. This design is the popular trends of CNC machine centers nowadays. It has feature of good rigidity, precision performance, saving space, high load bearing capacity and advanced automation.
4. CNC Machine 5 Axles Center's Four pieces Japan THK guide rails are mounted on Z axis. Box type construction and temper stress relieved, ensure Z axis good rigidity and stability during working with high speed on curved surface. And it is equipped with dual pneumatic counter balance cylinder which allow high accuracy and stability.
5. CNC Machine 5 Axles Center For 3D Big Ship Bus Model Making, owns Taiwan Syntec 5 axis CNC system, real-time tool center point rotation (RTCP). High level precision, high-speed cutting, diversified operation. Working speed, rapid speed, cutting speed and feed rate can be controlled separately. This improves contour quality and working efficiency. The protection function of intelligent processing over travel can prevent mechanical collision.
6. CNC Machine 5 Axles Center, Y axis equipped with 4 pieces THK guide rails. This ensures running accuracy of linear guide way, equal force during machine working, maintain a good mechanical precision and stability in fast running.
7. The head of CNC Machine 5 Axles Center uses high intensity cast aluminum processing method, also adopts imported large torque & high precision harmonic reducer and Italy spindle.

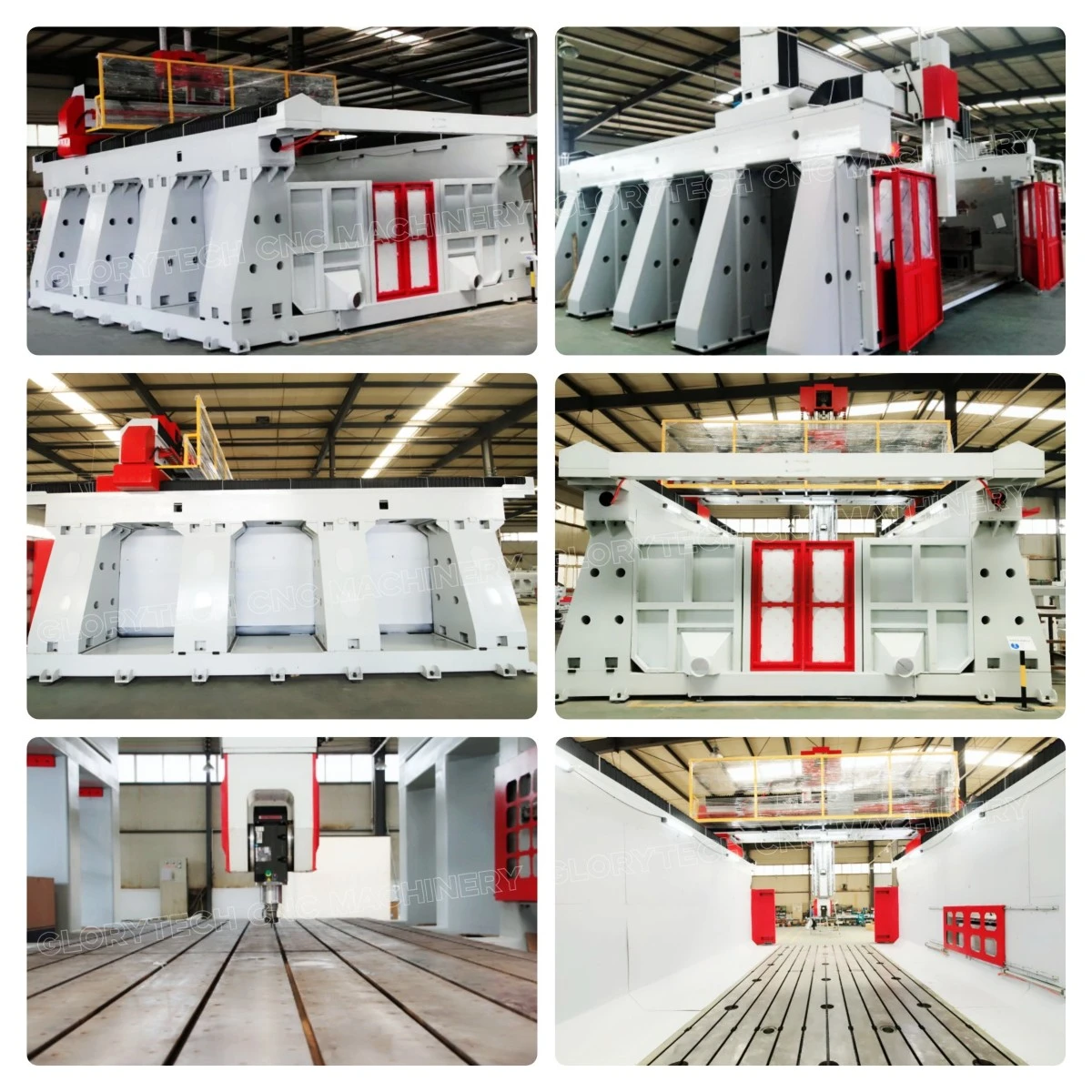

Details of CNC Machine 5 Axles for Reference
Wide Application of CNC Machine 5 Axles Center for 3D Model Mould Making
Application of CNC Machine 5 Axles Center for 2D/ 3D/4D/5D/6D Stereoscopic model Making/ Processing:
1. Modeling Related - Any kind of 3D shapes, Real estate Models.
2. Sculpture / Scene Making Related - Theme park decorations, Movie props, Humanoid sculptures.
3. Foundry -Wooden patterns, Lost-foam casting patterns, Composite material patterns.
4. Furniture Manufacturers - Mortise and tenon, Solid wood curved surfaces, Hand rail elbow.
5. Automobile Related - Unibody vehicle models, interior assemblies, parts molds / patterns.
6. Aviation Related - Parts molds /patterns, Propellers, Turbine Blades.
7. Composite Materials - Vacuum forming, Fiberglass parts, Rubber components.
8. Maritime Related - Parts molds / patterns, Turbine Blades.
9. CNC Machine 5 Axles Center could be professional used for 3D Big Ship Bus Model Making
Applicable material:
High density PS / PU / PMI foam/EPS, Carbon fibers, Plastics, Tooling boards / Blocks, Fiberglass, Modeling clay,nonmetallic carbon hybrid, Composite materials, Timber, Polystyrene material,Wooden materials, Solid woods, Soft Aluminum, and many other non-metal materials.
CNC Machine 5 Axles Center's Main Parameters
|
Model |
GY-SG4080T-5S |
Note |
|
XYZaxis EffectiveTravelling Size |
8500*4500*2200mm |
|
|
X Y axis effective working size |
8000mm*4000mm |
|
|
Zaxis Effective working size |
2000mm |
|
|
C axis |
±285° |
|
|
A axis |
±120° |
|
|
Precision Machining |
0.1mm/1000mm |
|
|
Max Traverse Speed |
50000mm/min |
|
|
Max processing speed |
30000mm/min |
|
|
XYZ three Axis Working Area |
8000mm*4000mm*2200mm |
|
|
5 axis together Working Area |
7500mm*3500mm*2000mm |
|
|
Max. Material's Size (Only using XYZ) |
8000mm*4000mm*1800mm |
|
|
Max. Material's Size (XYZAC together) |
7500mm*3500mm*1800mm |
|
|
Resolution |
0.1-0.05 mm |
|
|
Spindle power rate |
Original Italy 15 Kw ATC Spindle |
|
|
Inverter |
Delta |
|
|
X,Y structure |
Rack and pinion transmission, Taiwan-Hiwin/ YYC Linear Bigger orbit(45mm Size) |
Taiwan |
|
Z structure |
Taiwan Imported ball screw (5010model) |
Taiwan |
|
Motor of Y axis |
Yaskawa 4.2kw Servo |
Japan |
|
Motor of X, Z axis |
Yaskawa 3.0kw Servo |
Japan |
|
Driver |
Yaskawa Servo Motor |
Japan |
|
Gear reducer |
APEX |
|
|
Small Electronic parts |
France Schneider |
|
|
Guide Rail |
Hiwin 45mm |
Taiwan |
|
Spindle rotating speed |
0-24000r/min |
|
Samples Made by CNC Machine 5 Axles Center for Reference
